IGI Systems Mounting Plate

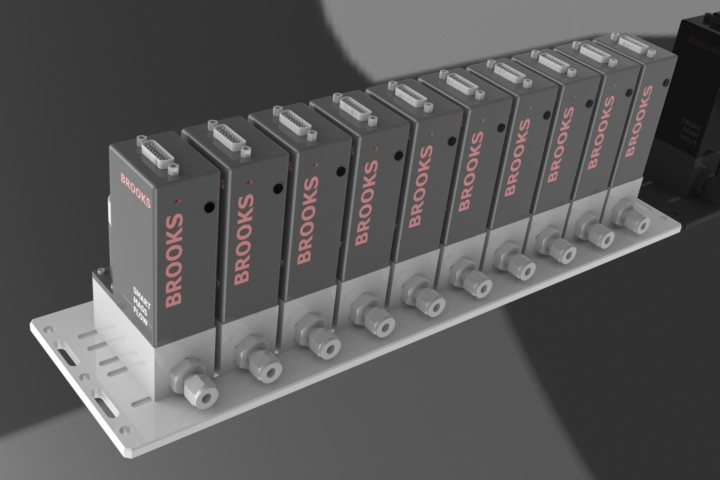

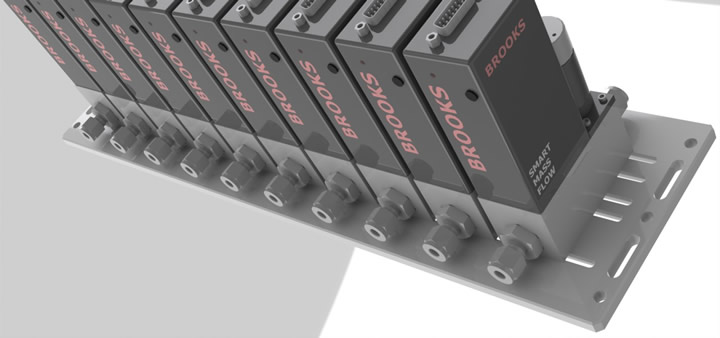

Our Mounting Plate is designed to sit on the bench, wall mount or fit into a standard 19 inch rack. It will accept Brooks S and SLA series devices 5850, 5851, 5860 and 5861 and 4800 series devices. It will conveniently and securely mount 10 5850S mass flow controllers.

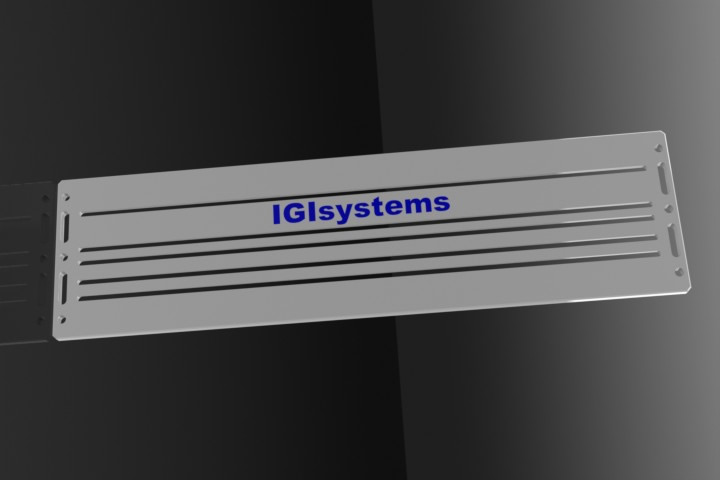

The Mounting Plate is CNC machined from 8mm thick aluminium (6082-T6) plate and clear anodized. The mounting channels are countersunk on the underside to allow fixing of the flow devices via #8-32 UNC socket head screws. A bag of 20 screws is provided with the Mounting Plate.
The use of the Mounting Plate is essential with our RS485 FlowStrip 5 USB-RS485 interface unit. This interface is in development and will be available early 2011. There are NO CABLES required.
Price: Contact Usfor a quotation
DOWNLOAD a spec sheet (PDF file)
